Elevate your RF designs with advanced, high-integration filters that deliver superior performance. Our solutions optimize signal quality and enable efficient transmission of multiple signals over a single line.
Filters, Multiplexers and Switched Filter Banks
Our SMT form factor delivers connectorized filter performance with low insertion loss, enhancing receiver sensitivity and improving link budgets. SMT, Wirebond, Pin transition, and Waveguide interfaces are all available, as well as Diplexer, Triplexer and Multiplexer solutions. Custom enhancements, such as integrating multiple filters into a single part, are also possible through our integrated services to provide even greater size benefits.

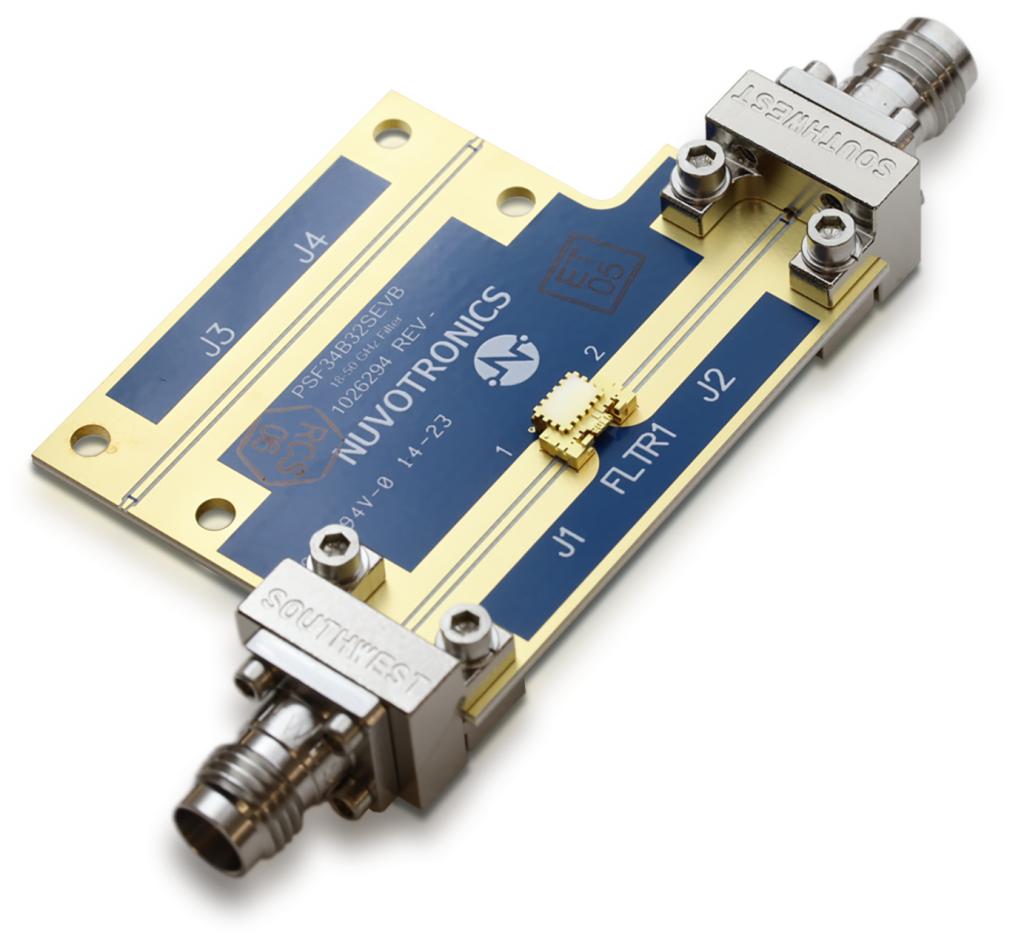

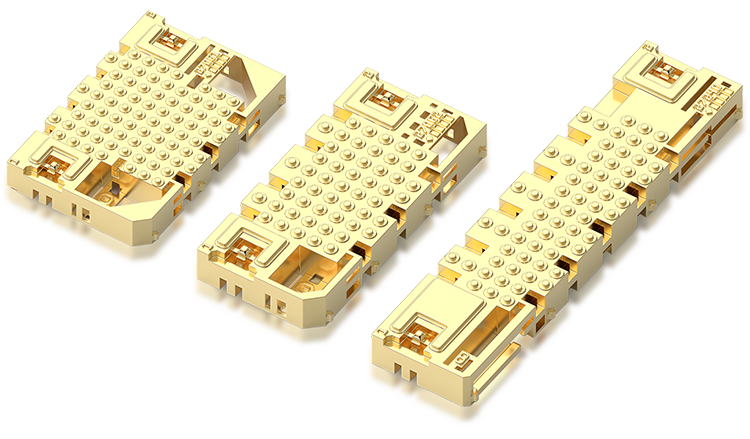

Filters
| Part Number | Frequency (GHz) | Insertion Loss | Data Sheet | Buy |
|---|---|---|---|---|
| PSF19B02S | 17.7-20.2 | 1.2 dB |  |
 |
| PSF19B03S | 17.7-21.2 | 0.9 dB | |
|
| PSF19B02V3S | 17.7-20.2 | 0.8 dB | |
 |
| PSF28B02S | 27.5-30 | 1 db | |
|
| PSF29B02S | 27.5-30 | 0.7 dB | |
|
| PSF29B03V2S | 27.5-31 | < 0.5 dB | |
|
| PSF29B03S | 27.5-31 | 1.2 dB | |
|
| PSF40B05S | 37.5-42.5 | 1.1 dB | |
|
| PSF49B05S | 47.2-52.4 | 1.2 dB | |
|
| PSF49B05V2S | 47.2-52.4 | < 0.5 dB | |
|
| PSF28B01S | 27.5-28.5 | 2.5 dB | |
|
| PSF29B01S | 28-29 | 2.5 dB | |
|
| PSF30B01S | 29-30 | 2.5 dB | |
|
| PSF31B01S | 30-31 | 2.5 dB | |
|
| PSF32B01S | 31.2-32.75 | 2.5 dB | |
|
| PSF29B01V2S | 28.25-29.25 | 2.5 dB | |
|
| PSF29B22S | 18-40 | 0.4 dB | |
|
| PSF34B32S | 18-50 | 0.3 dB | |
|
| PSFL06S | 6 | < 1 dB | |
|
| PSFL12S | 12 | < 0.75 dB | |
|
| PSFL18S | 18 | < 1.5 dB | |
|
| PSFL40S | 40 | < 1.5 dB | |
|
| PSD1840B2S | 0-18-40 | < 1.25 dB | |
|
| PSD1840B2SV2 | 0-18-40 | < 1 dB | |
|
Nuvotronics offers a wide range of standard and custom multiplexer products. Existing solutions include diplexers for SatCom systems (Ku and Ka), 2-7 way multiplexers, as well as wideband contiguous multiplexers including banded and sub-octave solutions. They can be configured for SMT and wirebonding, or integrated into modules depending on application. These solutions are applicable for SatCom (Tx/Rx), user channelization and high-linearity sub-octave receivers.

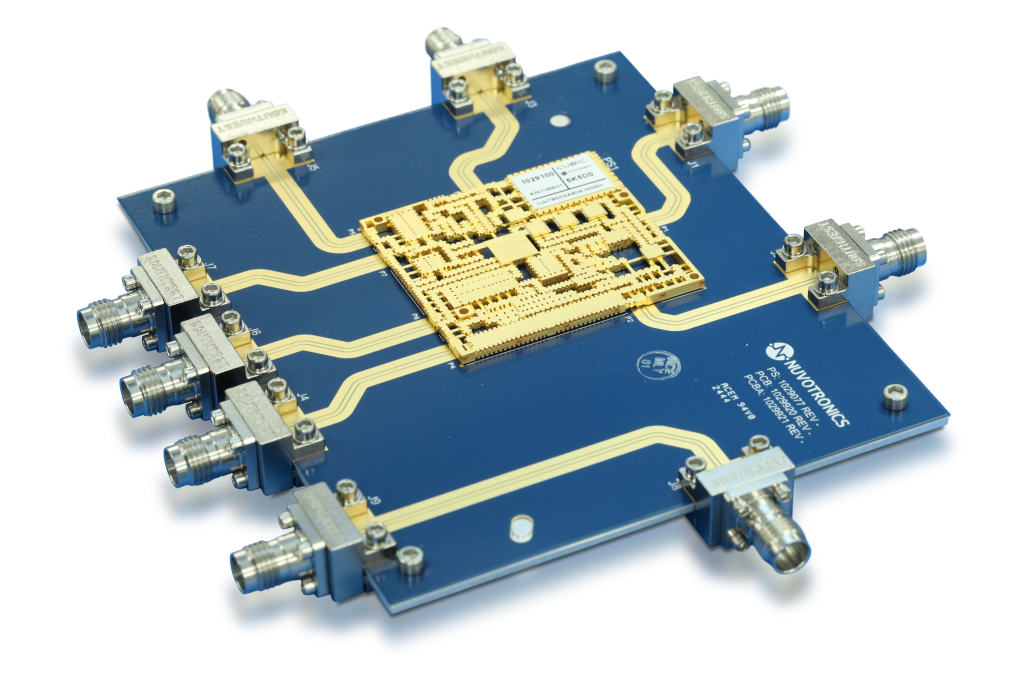

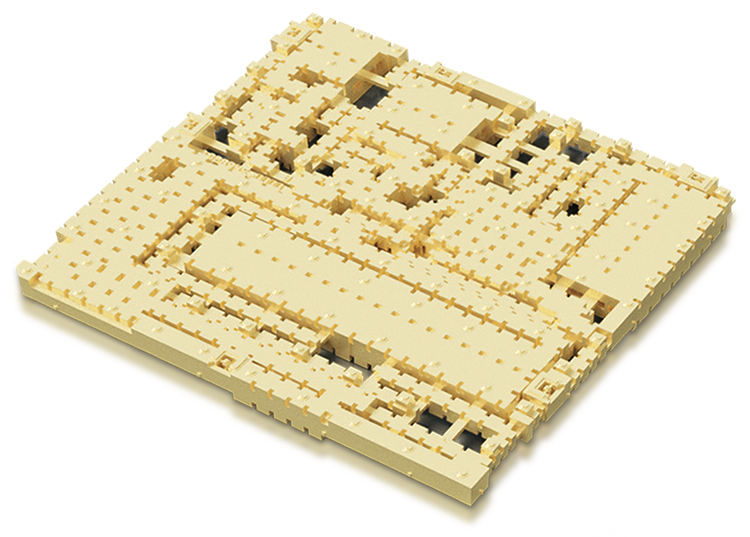

Multiplexers
| Part Number | Frequency (GHz) | Insertion Loss | Data Sheet | Buy |
|---|---|---|---|---|
| PSM0218B5S | 0-2-4-8-12-18 | < 2 dB | |
|
| PSM0640B4S | 0-6-10.5-18-40 | < 1.5 dB | |
|
| PSM0206B3S | 0-2-3.5-6 | < 1.5 dB | |
|
| PSD1840B2S | 0-18-40 | < 1.25 dB | |
|
| PSD1840B2SV2 | 0-18-40 | < 1 dB | |
|

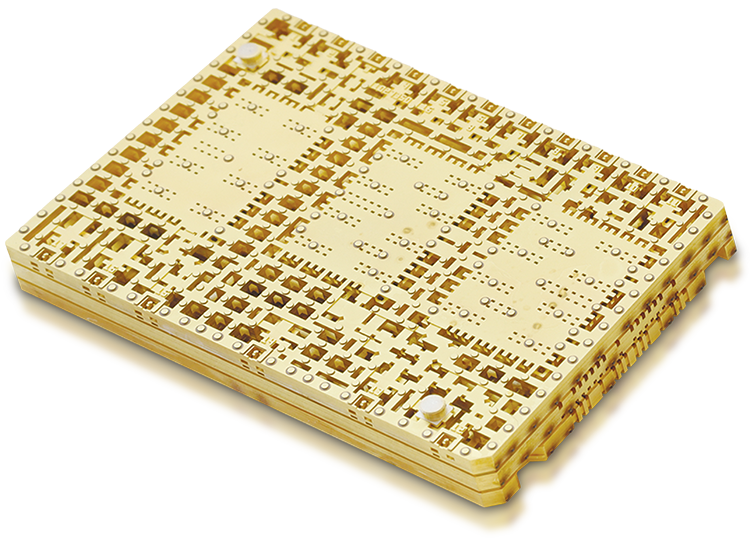

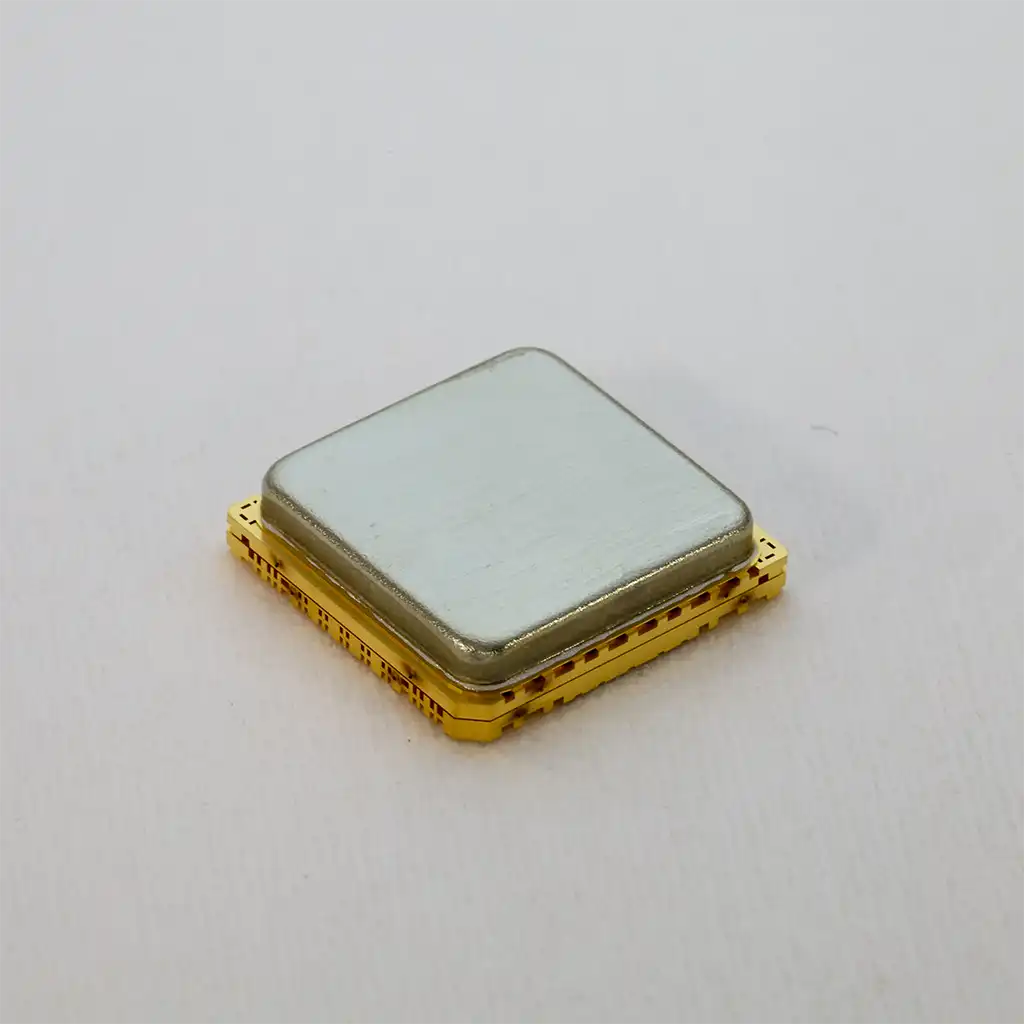

Choose from a wide range of standard and custom switched filter bank and band pass filter products. Nuvotronics offers high-performance switched filter banks in an SMT form factor, and we’re launching standard products that will have 4 channels covering 17.7-40 GHz frequency range. Our custom solutions include 4+ channels with frequencies from 2 through 60 GHz. Use our switched filter banks for SatCom, test and measurement, wideband transmit/receive systems, and high linearity sub-octave receivers applications.
Don’t see what you’re looking for?
Get in Touch
Talk to our experts to find the products or integrated solutions for your applications.
