Couplers, Combiners and Baluns

Elevate your RF designs with breakthrough combiners, couplers, and baluns that redefine efficiency and size. From broad and narrow band combiners, to multi-octave directional couplers, to wideband baluns, you can find a solution that meets your requirements and specs.

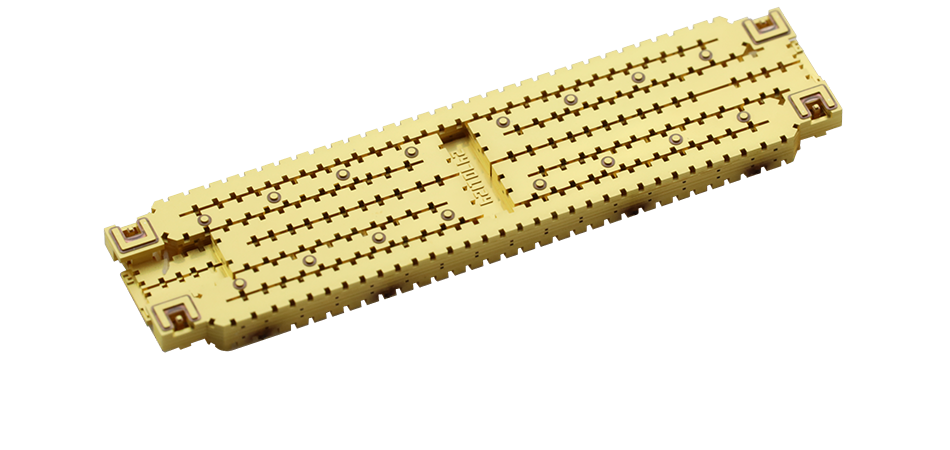

We offer multi-octave products ranging up to 110 GHz, featuring a low insertion that is typically less than 0.5 dB. Directional and 3dB couplers are available, with SMT and Wirebond interface options.

Part Number Description Frequency (GHz) Insertion Loss Output Power Market Data Sheet Buy

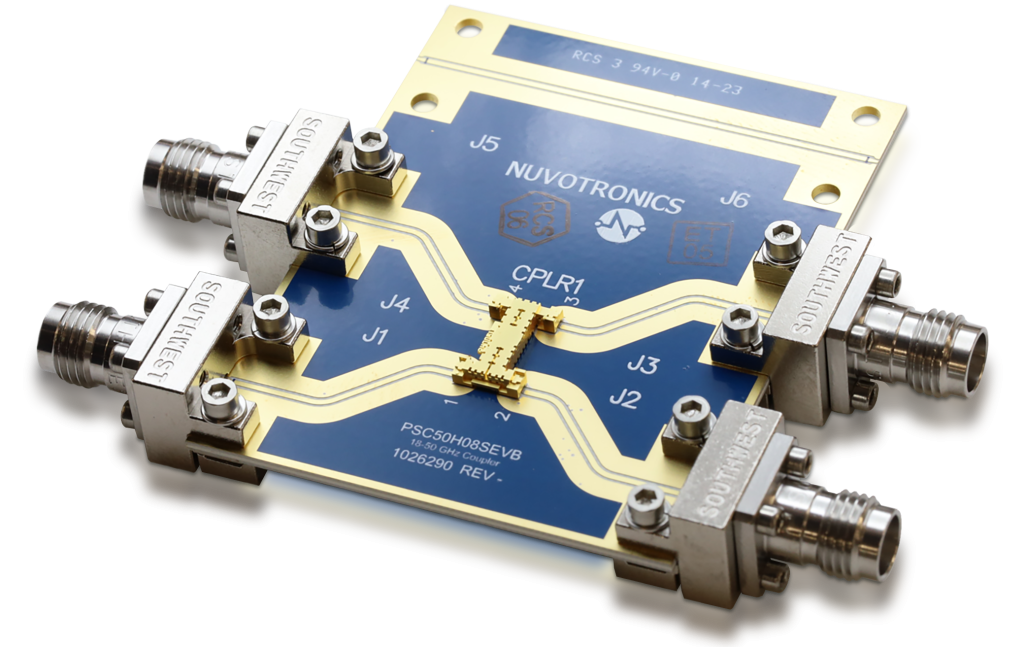

PSC18H17S 90 Degree Hybrid Coupler 2-18 0.75 dB 20W Electronic Warfare
PSC18H07S 90 Degree Hybrid Coupler 6-18 0.3 dB 20W Electronic Warfare
PSC50H08S 90 Degree Hybrid Coupler 18-50 0.35 dB 20W Electronic Warfare

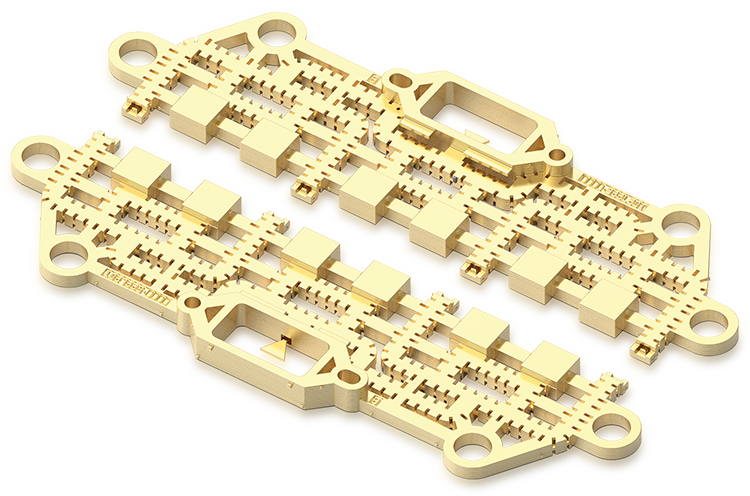

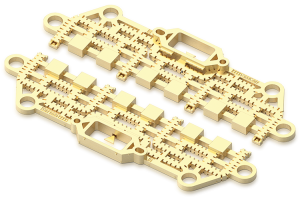

Get broad and narrow band solutions available up to 110 GHz that support up to 80W combined power. Offering a low insertion of less than 0.5 dB and good isolation of more than 15 dB, interface options are available in SMT and Wirebond, and Waveguide/Coaxial for output only.

Part Number Description Frequency (GHz) Insertion Loss Output Power Market Data Sheet Buy
PSX12Q12W 4-way combiner 6-18 0.4 dB 80W Electronic Warfare
PSX29Q22W 4-way combiner 18-40 0.4 dB 80W Electronic Warfare
PSX29Q03W 4-way combiner 27.5-31 0.4 dB 80W Commercial & Defense Space
PSX50Q05W 4-way combiner 47.2-52.4 0.5 dB 80W Commercial Space

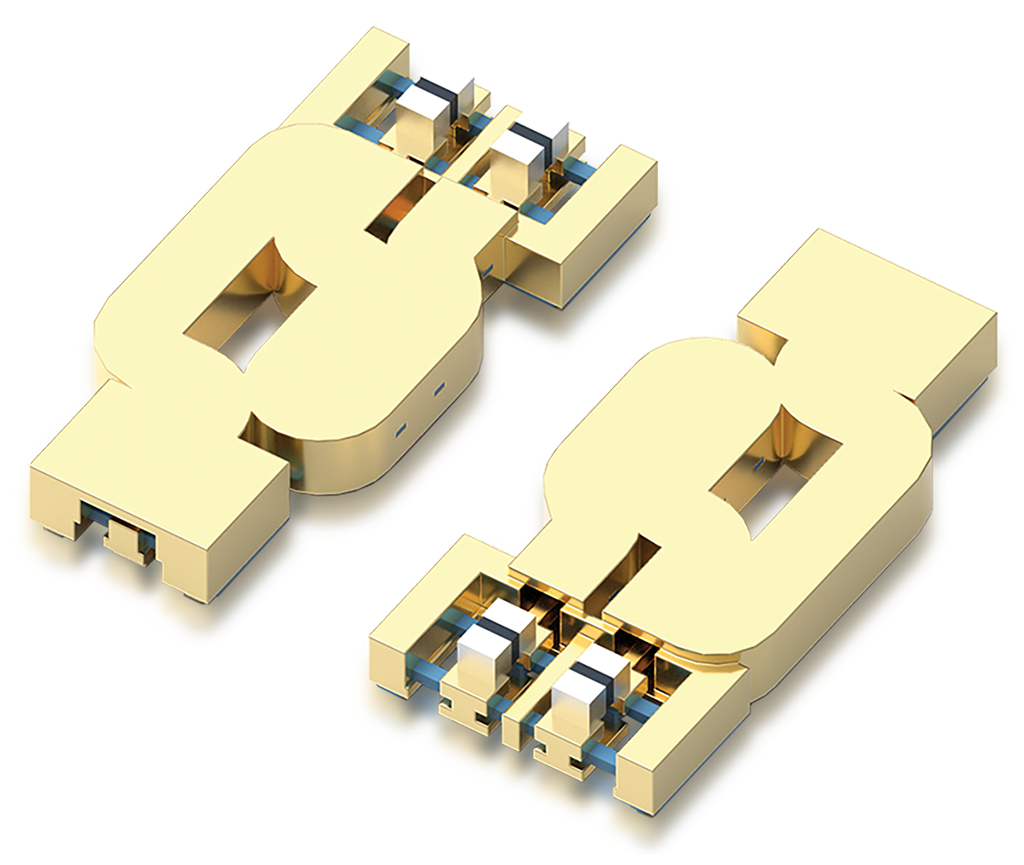

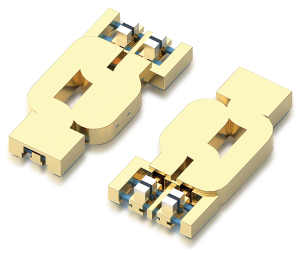

Nuvotronics makes wideband baluns, typically ~0.25 dB insertion loss and nearly perfect phase balance. They can be configured for SMT, wirebonding, or integrated into modules depending on the application โ€“ whether itโ€™s for antenna feeds, die combining, high-speed ADC/DAC, mixers, satcom, electronic warfare or test and measurement. Other balun topologies, including half-wave, sleeve and more, are available for narrower bandwidth applications.
