Wideband Antennas

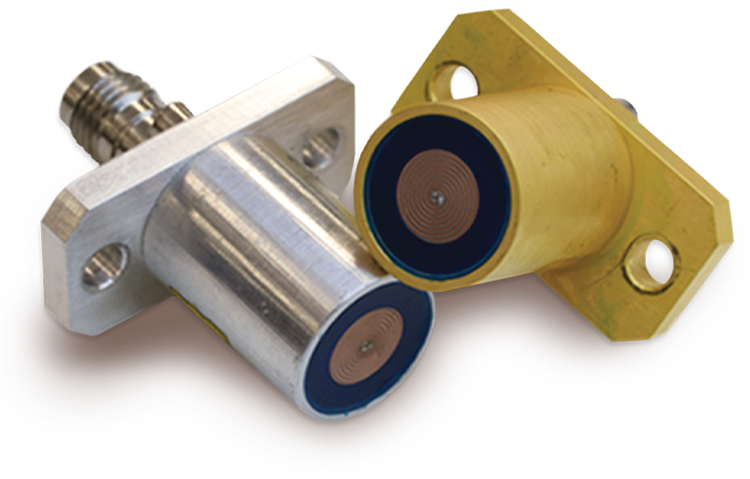

In the ever-evolving landscape of electronic warfare and secure communications, next-generation systems demand operation in the 18โ€“40 GHz frequency range and higher. Nuvotronics is at the cutting edge of this evolution, offering cavity-backed spiral and sinuous antennas designed specifically for military airborne applications. Leveraging our proprietary PolyStrataยฎ feed technology, these antennas deliver low-loss, wideband performance in a compact package.

Together, the spiral and sinuous antennas offer numerous options for configuring a wide FOV antenna above 18 GHz. With the spiral, select right or left polarization with 2.92/2.40/1.85 mm connector options. Upgrade to the sinuous antenna โ€” a groundbreaking development โ€” representing the first to industry dual-polarized four-arm antenna in the 18-40 GHz band that occupies the same footprint of a single 0.5โ€ spiral antenna. Both dual-circular and dual-linear polarization options are available.

Antennas

Part Number Description Frequency (GHz) Product Band Market Data Sheet Buy
PSA1850C-4 4-arm sinuous antenna 18-50 Sinuous Mid/High Band Electronic Warfare
PSA1850C 2-arm spiral antenna 18-50 Spiral Mid/High Band Electronic Warfare

Custom Antenna Array

For both analog and digital phased array systems, PolyStrata improves performance while also addressing the size, ease of use, and cost requirements of these advanced systems.
